Reproducible and Publicly Visible Data Analysis

Nils Ratnaweera

2024-03-05

Table of contents

• 1 Reproducibility in Data Science
• 2 Literate Programming and Quarto
• 3 Markdown
• 4 Quarto
• 5 Quarto Advanced
• 6 Publishing HTML / Websites
• 7 Versioncontrol with Git and GitHub

Today

1 Reproducibility in Data Science

I believe history will see RMarkdown as a turning point in the replication crisis.

You all saw the video of Garret Grolemund for the RStudio conference 2019.

Note that Quarto, which we will discuss today, is the successor of RMarkdown.

It is estimated that 75 - 90% of preclinical results cannot be reproduced.

Other fields of science probabbly are even worse off.

Lack of reproducibility

is a problem

Quarto, Git & GitHub are

(part of) the solution

2 Literate Programming and Quarto

Let’s start with literate programming, which is a term coined by Donald Knuth 1984. J. Bentley phrases it like so:

When was the last time you spent a pleasant evening in a comfortable chair, reading a good R Script?

– Adapted from John Bentley (1986) “Communications of the ACM”

content

• Why would you even do that?
• A lot of good R-Scripts are written, only a small portion of them are only ever read. Why?
• As mentioned, Donald Knuth “invented” this paradigm 1984.

Donald Knuth 1984

Literate programming is a programming paradigm introduced in 1984

Donald Knuth 1984

I’ve stumbled across a method of composing programs that excites me very much.

Let us change our traditional attitude to the construction of programs:

Instead of imagining that our main task is to instruct a computer what to do, let us concentrate rather on explaining to human beings what we want a computer to do.

• Donald Knuth invented this method for Programs. But we can replace the word “program” with R Script.
• Check if the sound works (next up: video)

Exercise: Literate Programing 🛠️

Make your R-Script literate

1. Download the Folder GOT.zip from moodle (Game of Thrones Dataset)
2. Unzip the File in a reasonable location
3. Open the .RProj File with RStudio
4. Run the RScript got-1.R and try to undestand what is happening
5. Make the R-Script literate by explaining to human beings what we want a computer to do

Do this as well via sharing the screen

3 Markdown

Why Markdown?

• Using RComments to explain your code is great, but very limiting
• We cannot properly structure our comments: Highlight words, work with images, hyperlinks etc
• This is where markdown comes into play

What is Markdown?

• A Lightweight markup language
• Easy to learn
• Machine readable and human readable

Markdown Syntax

# A story of a fox

The *quick* brown fox **jumps** over the lazy dog.

![](images/fox-over-dog.jpg)

A story of a fox

The quick brown fox jumps over the lazy dog.

• Markdown Basics
• Abbildungen
• Tabellen

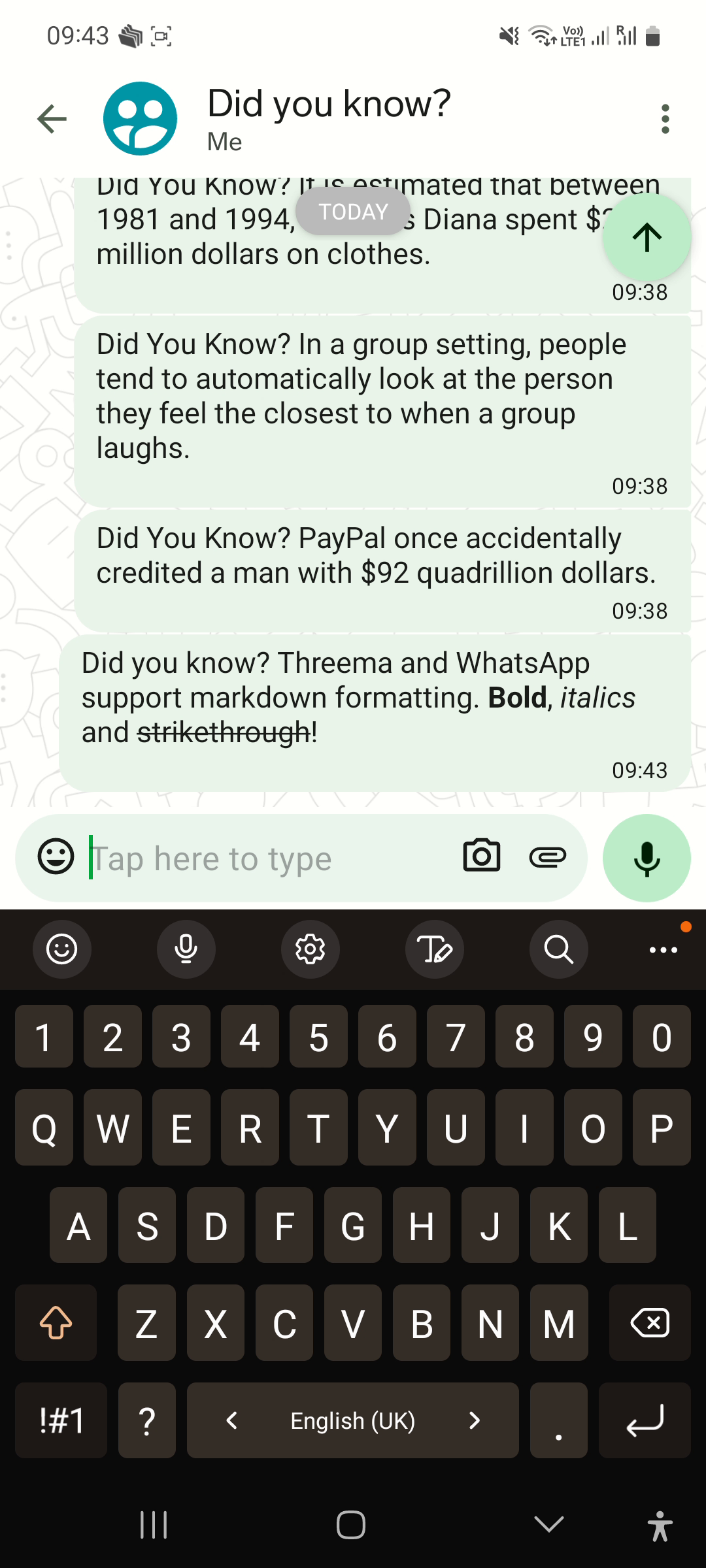

Markdown exercise 🛠️

1. Grab your smartphone (if you have one)
2. Open your favorite messenger: Threema, Telegram or WhatsApp (not Signal)
3. Send the following text message to your favorite geek:

Threema / WhatsApp:

Did you know? Threema and WhatsApp support markdown formatting.
*Bold*, _italic_ and ~strikethrough~!

Telegram:

Did you know? Telegram supports markdown formatting.
**Bold**, *italic* and ~~strikethrough~~.

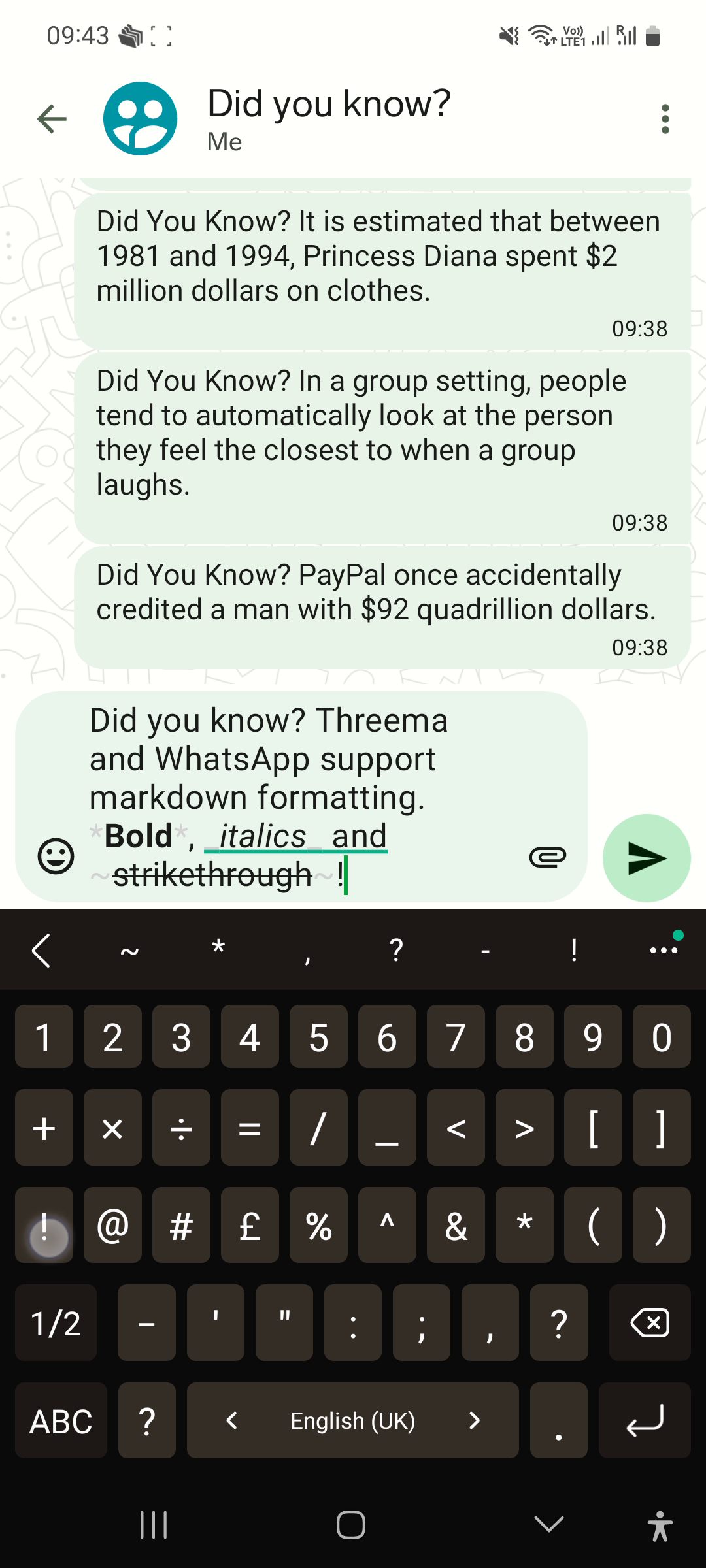

• On the left side, our “Markdown Editor” previews our markdown syntax while typing.
• However, event without this preview the markdown text is human readable
• On the right side, we see a rendered version of our text.

If that was Markdown, what’s Markup?

• Markup is a generic term for a language which structures text in a machine readable way (use of tags / symbols)
• Markdown is a markup language
• Other markup languages include: HTML and LaTeX
• Here is an example of making bold text
  • Markdown: **Hello World**

  • HTML: <b>Hello World</b>

  • LaTeX: \textbf{Hello World}

As seen in the comparison, Markdown is Human readable!

4 Quarto

What is Quarto?

• Combines Markdown with R to generate Documents
• Also works with Python, Julia…
• Can create PDFs, Websites, Books or Slides of your data analysis
• Is OpenSource
• Is used via the commandline / terminal

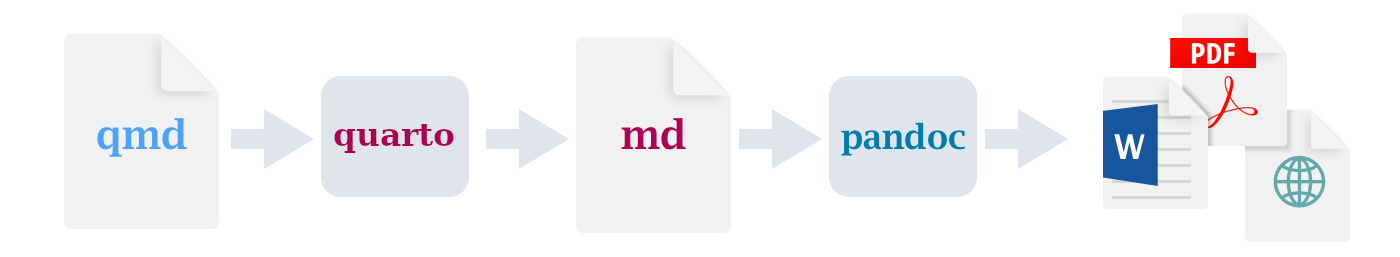

• Workflow:

Quarto Exercise 1 🛠️

1. Check if quarto is installed by running the following command in your terminal:

   quarto --version

2. install quarto if necessary (➲ quarto.org)

Quarto Exercise 2 🛠️

1. Create a new Quarto file

   • Remove the checkbox Use visual markdown editor
   • Click on Create empty document

2. Save as got-2.qmd

3. Write some prose on the analysis done in got-1.R (no R code yet)

4. Render the file to html by running the following code in your terminal

   quarto render got-2.qmd

• To highlight that we are really just working with textfiles, dont create a quarto file yet
• Don’t add any R Code yet!
• You could also use RMarkdown, but we recommend quarto

Quarto Exercise 3 🛠️

• Iterative development with render: 🫤

• Iterative development with preview: 🥰

  # quarto render markdown.md
  quarto preview markdown.md

Quarto Exercise 4 🛠️

• Markdown talks to humans
• R Code talks to humans & the computer
• Let’s add the R-Code from got-1.R with Ctrl+Alt+i
• This adds a “fence” where we can add R-Code
• Add the R-Code from got-1.R into the code block
• Check your updated preview

YAML Header

• YAML: YAML Ain’t a Markup Language

• A machine- and human-readable way of storing structured data

• An example:

  title: Analysis of GOT Series
  author: Nils Ratnaweera

• In Quarto: Record metadata (e.g. title, author and date)

• Is inserted at the beginning of the document and enclosed with ---

YAML Header Exercise 1 🛠️

• Add metadata to your markdown file using YAML headers
• Regard the output (quarto preview)

---
title: Analysis of GOT Series
author: Your Name
---

YAML Header Exercise 2 🛠️

• Add a format specification to your YAML header: Either typst (recommended) or pdf
• This renders your file to pdf
• If you use pdf, you might need to install tinytext (see message in terminal)

---
title: Analysis of GOT Series
author: Nils Ratnaweera
format: typst
---

Exercise YAML Header 3 🛠️

---
format:
  pdf:            # pdf specific optons:
    toc: true     # - should a Table of Contents be published?
    toc-depth: 1  # - How many layers should be displayed in the TOC?
---

5 Quarto Advanced

Quarto Advanced Exercise 1 🛠️

• Insert one of the images included in your folder into your document
• (quarto.org → Guide → Authoring → Figures)

Quarto Advanced Exercise 2 🛠️

• Insert an cross-reference to this image. E.G: see Figure 1
• (quarto.org → Guide → Authoring → Scholarly Writing → Cross-References)

Figure 1: The coat of arms of House Baratheon from A Song of Ice and Fire

• For a cross-reference, the element to which you want to refer needs an ID

• This is set in {} and begins with #, for images # is followed by a fig. e.g:

  ![The coat of arms of the House of Baratheon...](images/baratheon.png){#fig-baratheon}

• To refer to the image, use @fig-baratheon

Quarto Advanced Exercise 3 🛠️

• Insert a crossreference to a chapter eg see Section 5.3
• (quarto.org → Guide → Authoring → Scholarly Writing → Cross-References)

• Chapter references get a {#sec-}
• Chapters are (currently) only referenced with numbers
  • in the YAML header set: number-sections: true
  • See this open issue https://github.com/quarto-dev/quarto-cli/issues/1196

Quarto Advanced Exercise 4 🛠

• In Quarto, figures can consist of subfigures
• See: quarto.org → Guide → Authoring → Figures → Subfigures
• Creates a subfigure layout similar to the following:

(a) House Baratheon

(b) House Baylish

(c) House Arryn

(d) House Bolton

Figure 2: A collection of different coats of arms from the book ‘A song of Ice and Fire’, created by dezzzart published on deviantart.com

Quarto Advanced Exercise 5 🛠

• Add a caption and a cross reference to your ggplot-figure

Quarto Advanced Exercise 6 🛠

• Display a table with the top 10 characters in regard to screentime, displaying only the columns name, screentime and episodes.
• Reference this table in your text
• Add a caption to your table
• quarto.org → Guide → Authoring → Tables → Cross References
• Hint: use knitr::kable()

Quarto Advanced Exercise 7 🛠

• Add a (dummy) abstract
• Make sure this abstract is not numbered and not in the TOC
• quarto.org → Guide → Documents → HTML → HTML Basics

Quarto Advanced Exercise 8 🛠

Let’s add a citation!

1. Got to scholar.google.com
2. Get the bibtex entry of a scientific paper
3. Create a new text file named bibliography.bib
4. Add the bibtex entry to this file
5. Include the file in the YAML header: bibliography: bibliography.bib
6. Now you can reference this entry using:
   • @knuth1984 for Knuth (1984)
   • see [@knuth1984] for see (Knuth 1984)

• For more information see quarto.org → Guide → Authoring → Scholarly Writing → Citations
• To include Zotero, see quarto.org → Guide → Tools → RStudio IDE → Visual Editor → Technical Writing → Citations → Citations from Zotero

content

6 Publishing HTML / Websites

Publishing HTML Files

• HTML can be shared publicly by creating a website
• Some options:
  • RPubs
  • QuartoPub
  • GitHub Pages
  • Netlify

Exercise Publish HTML with RPubs 🛠️

• Create a new account on rpubs.com
• Click on the Blue Publish Button on the Top right of your script
• Choose RPubs
• Click on Publish

7 Versioncontrol with Git and GitHub

GIT LETS YOU TELL THE STORY OF YOUR PROJECT

You use Git to take snapshots of all the files in a folder.

This folder is called a repository or repo.

When you want to take a snapshot of a file or files, you create a commit

Convinced?

Want to learn Git?

→ Do the optional exercises on computationalmovementanalysis.github.io

(Week 3 → Exercise A and Exercise B)
